High-level Architecture

The code base covers several user interfaces covering different aspects of the DUNE run control system. There are distinct interfaces but also shared infrastructure and approaches.

For this reason the code is organised into the following Django apps:

  • process_manager - the Process Manager UI.
  • controller - the Controller UI.
  • session_manager - the Session Manager UI.
  • main - common functionality and shared infrastructure between the UIs.

It also contains the following packages (not Django apps):

  • interfaces - Code to interface with the drunc endpoints.

This separation of concerns has been chosen to allow splitting the UIs into separate code bases at a later point if desired.

Design Goals

  • Compatibility with wider expertise of the DUNE project i.e. Python and avoiding complex frontend code.
  • Simplicity.
  • Provide a "good enough" user experience.
  • Ease of development.

Technology Choices

  • Django
    • A popular Python back-end framework with a batteries included approach.
    • Standardised code layout.
    • Abstraction over underlying database technology via Object Relational Mapping.
    • Excellent documentation.
    • Broad range of community packages.
  • HTMX
    • Frontend library that adds dynamic behaviour to html to enable server side rendering.
    • Easy to learn.
    • Declarative approach.
    • Popular in the Django community.
    • Can be used sparingly and progressively alongside standard Django templating.
  • Hyperscript
    • A front-end scripting alternative to Javascript.
    • Complements HTMX by providing small amounts of dynamic behaviour where required.
    • Prioritises readability and conciseness.
    • Emphasises locality of behaviour.
    • Can be used sparingly and progressively alongside standard Django templating.

External Interactions

Dune Run Control (drunc)

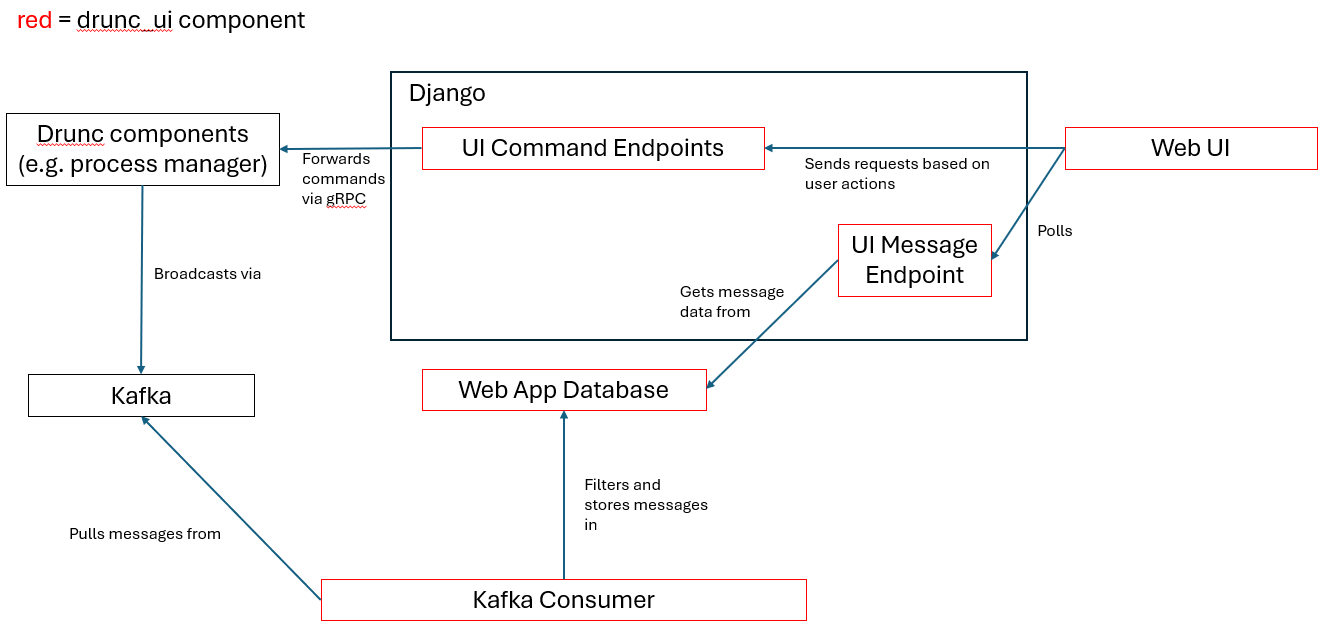

The primary purpose of this code base is to provide web based user interfaces for the various components of drunc (e.g. the process manager or controllers). Interactions with drunc components use the provided gRPC interfaces however this is abstracted over by the Driver classes provided in the drunc codebase (see for instance the ProcessManagerDriver class). A thin wrapper over the driver classes is used to handle authentication (currently dummy tokens).

Kafka

Kafka is used to send informational messages between different components of drunc. These messages are displayed in several places in the web UIs. Receiving messages from Kafka requires a long-running process to act as a consumer and make messages available within the web application.

Authentication

In the absence of a defined authentication mechanism for use in production, the project currently uses the built-in Django authentication system. This requires manual creation of users via the Django command line interface and stores user data in the application database. This is a placeholder that will need to be replaced.

Permissions

Permissions are used to control the actions that can be performed or information that can be viewed by different users. Permissions are defined on the custom user model defined in main/models.py. A fine-grained approach is taken to permissions whereby individual actions have their own associated permission. Once the authorisation model for the dune-daq systems is well defined, individual permissions can be grouped together into user roles via Django groups.

Database

This application requires a database to:

  • Store user data.
  • Manage user sessions.
  • Cache broadcast messages.

An SQLite database is used in development however Django abstracts over the underlying database technology and supports multiple different databases that may be used in deployment.
