Concepts: How logging works in DUNE-DAQ

This page explains the underlying concepts behind Python logging and how daqpytools builds on them. Reading this will help you understand why the how-to guides are structured the way they are.

For hands-on instructions, see the how-to guides. For the API reference, see the reference.

Python logging fundamentals

The bulk of the logging functionality in drunc and other Python applications is built on the Python logging framework, with its mission defined below:

This module defines functions and classes which implement a flexible event logging system for applications and libraries.

It is worth reading to understand how logging works in Python; the salient points are covered below.

In general, the built-in logging module allows producing severity-classified diagnostic events, which can be filtered, formatted, or routed as necessary. These logs automatically contain useful information including timestamp, module, and message context.

The core object in Python logging is the logger. A logging instance, log, can be initialized as follows. The phrase "Hello, World!" is bundled with other useful metadata, including severity level, to form a LogRecord, which is then emitted as required.

import logging
log = logging.getLogger("Demo")
log.warning("Hello, world!")

>> Hello, World!

Severity levels

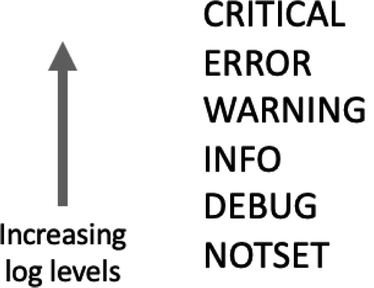

Every record has an attached severity level, which can be used to flag how important a log record is. By default, Python has 5 main levels and one 'notset' level as shown in the image below:

log_level_overview

More levels can be defined as required, see Python's logging manual.

Each logging instance can have an attached severity level. If it has one, then only records that have the same severity level or higher will be transmitted.

import logging
log = logging.getLogger("Demo", level = logging.WARNING)

log.info("This will not print")
log.warning("This will print")

>> This will print

Handlers

Handlers are a key concept in Python logging, since they control how records are processed and formatted. DAQ uses several standard handlers as well as custom handlers.

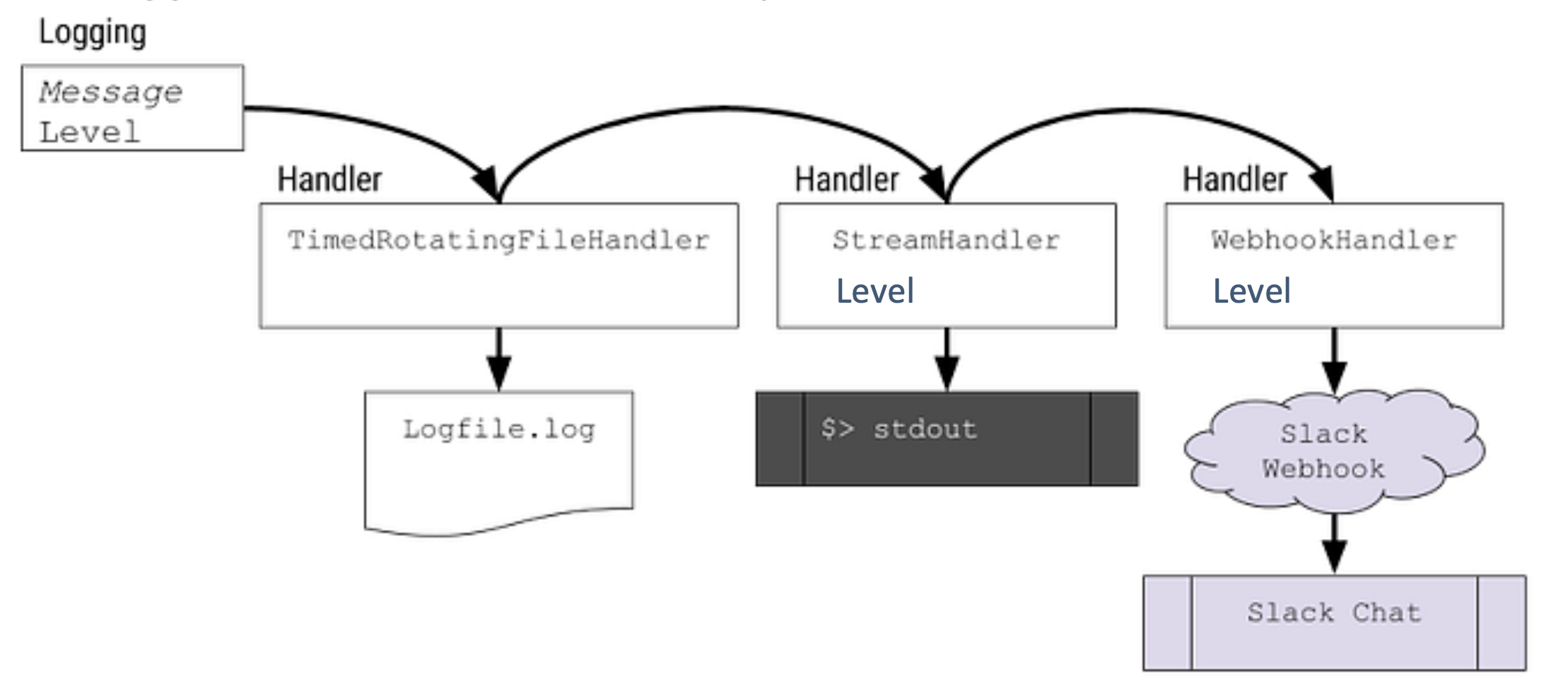

The image below shows a file handler, a stream handler, and a webhook handler. Each record is processed and formatted by each handler and then transmitted through that destination.

drunc_overview

Importantly, each handler can have its own associated severity level! In the example above, it is certainly possible to have the WebHookHandler to only transmit if a record is of the level Warning or higher.

Filters

Filters are an important add-on for loggers, and their primary purpose is to decide whether a record should be transmitted. Filters can be attached to both a logger instance and its handlers.

When a log record arrives, it is first processed by filters attached to the logger. If it passes, the record is then passed to each handler and processed again by that handler's filters. A record is emitted only if those checks pass.

filters

Inheritance

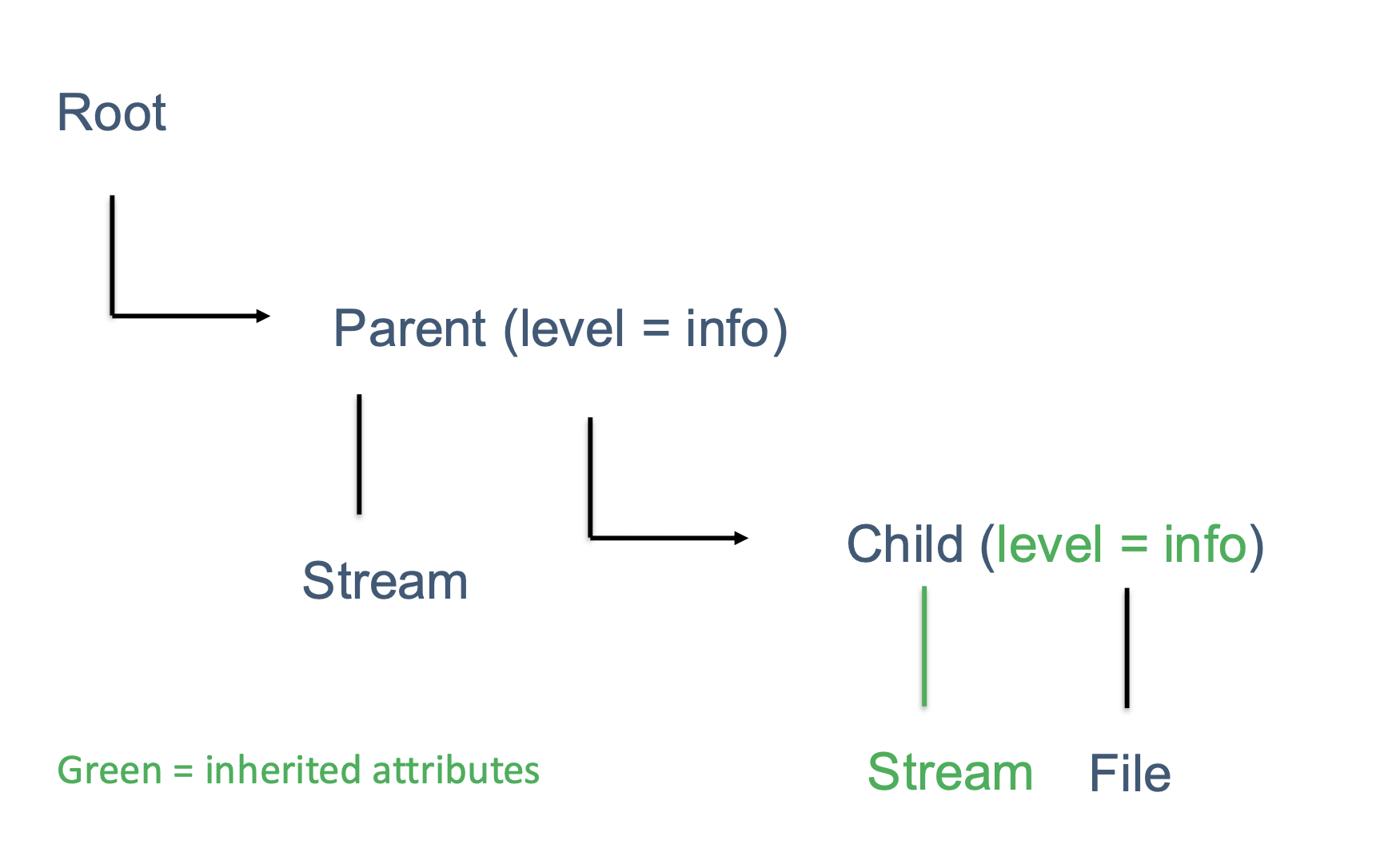

Another key part of Python logging is inheritance. Loggers are organized hierarchically, so you can initialize descendant loggers by chaining names with periods, such as "root.parent.child".

By default, loggers inherit certain properties from the parent: - severity level of the logger - handlers (and all attached properties, including severity level and filters on handlers)

inheritance

Note one exception: they do not inherit filters attached directly to the parent logger itself.

A useful diagram is the logging flow in the official Python 3 docs.

How daqpytools extends Python logging

The daqpytools package contains several quality-of-life improvements for DAQ Python tooling, including logging utilities.

These include: - standardised ways of initialising top-level 'root' loggers - constructors for default logging instances - many bespoke handlers - filters relevant to the DAQ - handler configurations

The core philosophy of the logging framework in daqpytools is that each logger should only have one instance of a specific type of logger. This means that while a single logger can have both a Rich and a Stream handler, a single logger cannot have two Rich handlers to prevent duplicating messages.

Understanding handler streams and routing

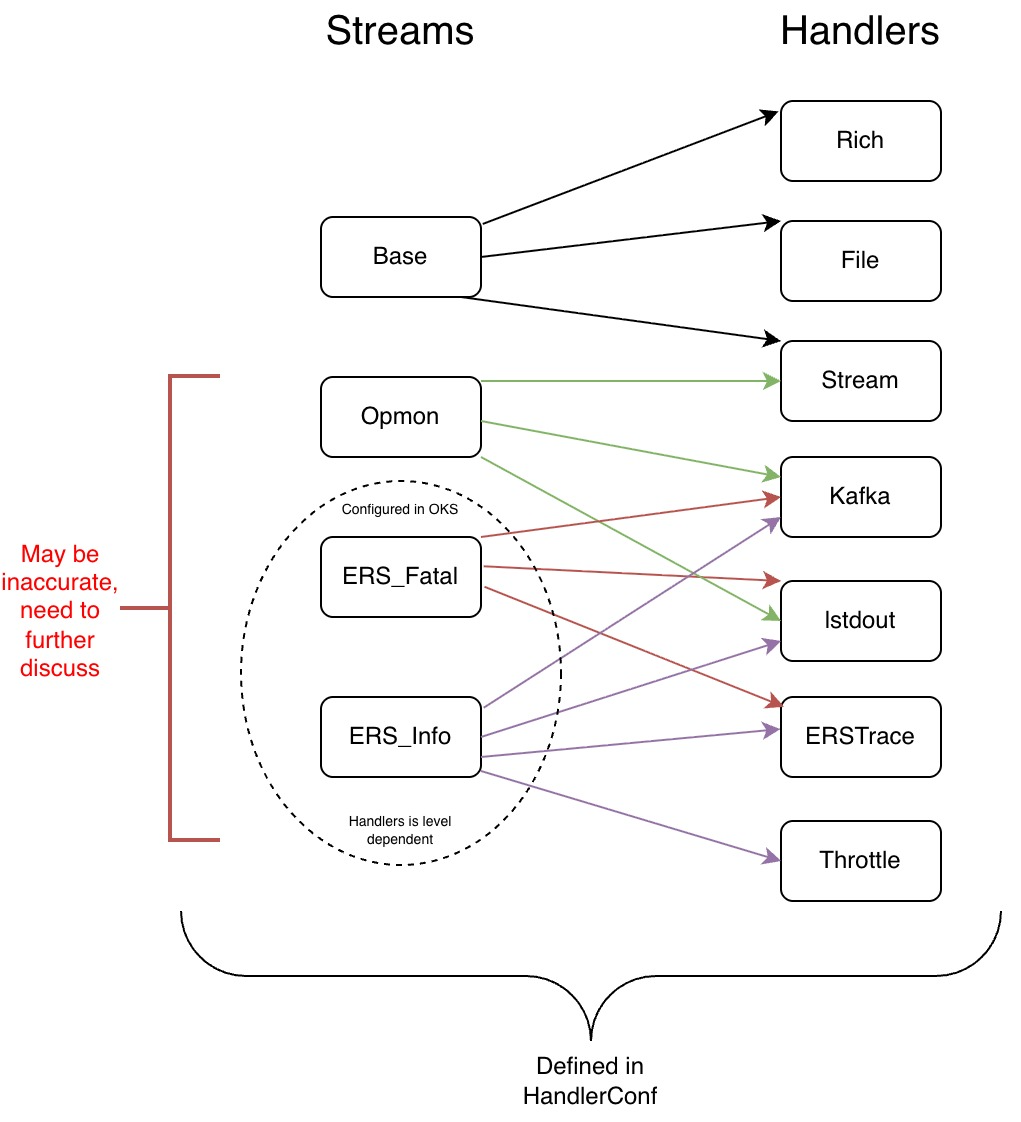

Within the DUNE DAQ ecosystem, there are several handler configurations that work together. The native implementation supports three logical streams:

  • Base stream: Standard logging (Rich, File, Stream handlers)
  • OpMon stream: Monitoring-related output
  • ERS stream: error reporting system routing (severity-driven handler selection)

You can think of streams as different "channels" where each has its own set of handlers. The key insight: ERS Kafka handlers and Throttle filters need to be explicitly activated via HandlerType tokens because they're typically only used when specifically configured.

streams

This is why routing via extra={"handlers": [...]} matters — it tells the logger which stream/handlers to use for each record.
